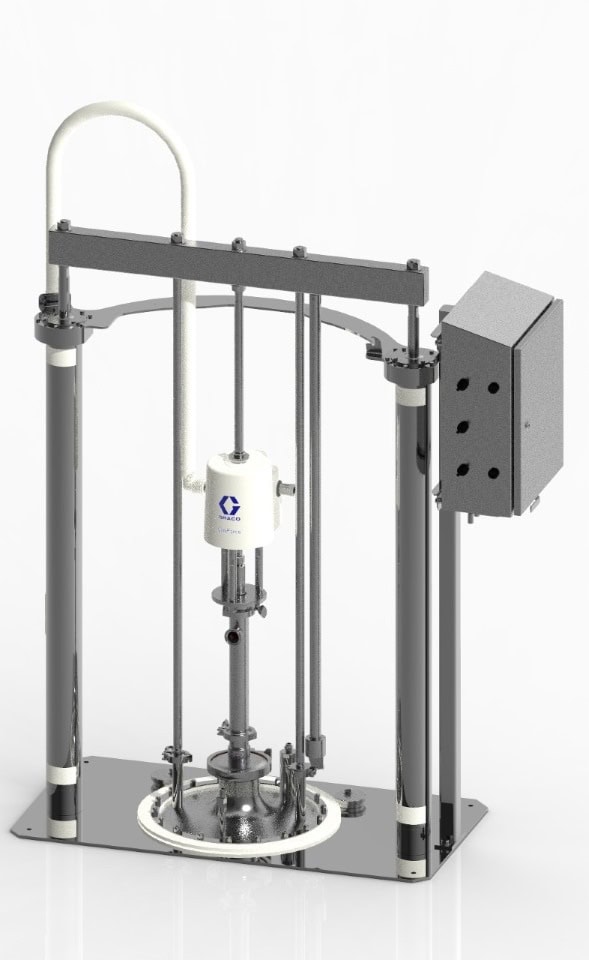

SaniForce 6:1 Sanitary Drum Unloader
Evacuation rates up to 4 gpm (15 lpm). Siphon viscosities up to 1,000,000 cps.
The SaniForce 6:1 Sanitary Drum Unloader features an on-demand workflow capability and can also be taken apart quickly for applications that require frequent sanitation. Available in double ball and priming piston designs for additional system flexibility.
technical specifications
SaniForce 6:1 Sanitary Drum Unloader:
- Evacuation rates of up to 4 gpm (15 lpm) at 60 cpm
- 600 psi (41 bar, 4.1 MPa), outlet pressure
- One size follower plate and seal to accommodate straight-sided and tapered drums
- Sanitary flange clamps for quick disassembly
- Unloading of somewhat flowable to moderately flowable fluids, from the original 55-gallon containers without diluting the material
- Suitable to pump products such as: jam, jelly, icing, frosting, soft peanut butter, heavy chocolate, tomato paste, lotions and cosmetics
Wiper seal:
- FDA-compliant neoprene inflatable ram plate seal
- Faster change-out of empty containers
- Liner guard prevents bags from entering pump
- Evacuation rates up tp 99%
