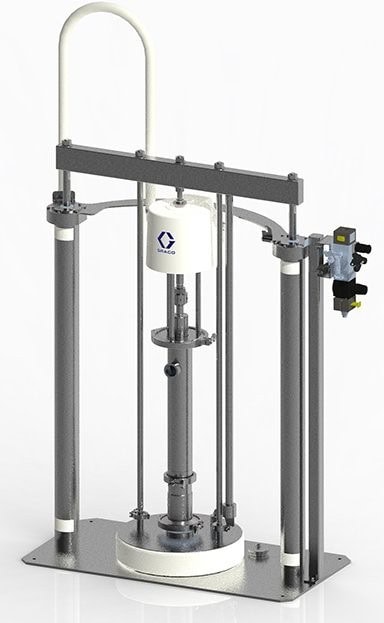

SANIFORCE 5:1 SANITARY DRUM UNLOADER

Quick Knockdown Pump for Sanitary Applications

Evacuation rates up to 14 gpm (53 lpm). Siphon viscosities up to 1,000,000 cps.

The SaniForce 5:1 Sanitary Drum Unloader features an on-demand workflow capability and can also be taken apart quickly for applications that require frequent sanitation. Available in double ball and priming piston designs for additional system flexibility.

Features

SaniForce 5:1 Sanitary Drum Unloader:

• Evacuation rates up to 14 gpm (53 lpm), running at 60 cpm
• 400 psi (28 bar, 2.8 MPa), outlet pressure
• One size follower plate and seal to accommodate straight-sided and tapered drums
• Sanitary flange clamps for quick disassembly
• Unloading of somewhat flowable to moderately flowable fluids, from the original 55-gallon containers without diluting the material
• Suitable to pump products such as: jam and jelly, icing and frosting, soft peanut butter, heavy chocolate, tomato paste, corn syrup, toothpaste and cosmetics

Wiper seal:

• FDA-compliant neoprene inflatable ram plate seal
• Faster change-out of empty containers
• Liner guard prevents bags from entering pump
• Evacuation rates up to 99%
